We Are Producing Heavy-Duty Industrial Valves Since 1979

VANASAN Cast & Forged Steel Valves

PN 10 - 16 - 25 - 40 - 100



Forged process brings the particles of the steel closer which makes it denser and conseguently a robust material compared to cast steels.

Forged also gets rid of the imperfections and the possible voids in the original steel.

There for forged steel valves are ideal for petroleum refineries, oil and gas lines and power plants.

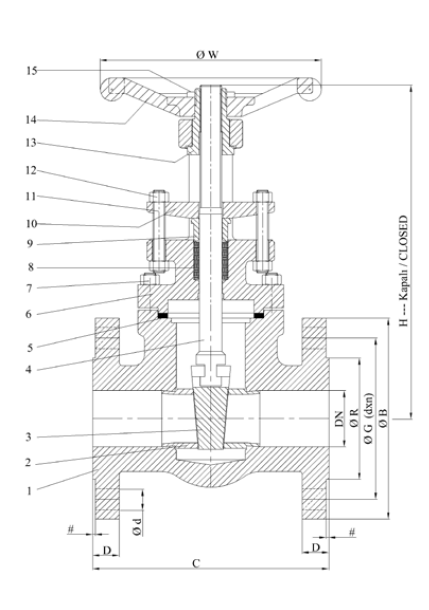

  PN 10 - PN 16 Figure V 2106 / PN 25 - PN 40 Figure V 2107
          Size   C   H   D   Ø R   Ø G   Ø B   W   App. W
  inch   DN   mm   mm   mm   mm   mm   mm   mm   kg
  ½   15   130   134   16   45   65   95   96   4
  ¾   20   150   143   18   58   75   105   96   5
  1   25   160   182   18   68   85   115   96   7
  1 ¼   32   180   228   18   78   100   140   130   11
  1 ½   40   200   228   18   88   110   150   130   12
  2   50   230   260   20   102   125   165   150   15


  PN 100 Figure V 2108
          Size   C   H   D   Ø R   Ø G   Ø B   W   App. W
  inch   DN   mm   mm   mm   mm   mm   mm   mm   kg
  ½   15   210   134   20   45   75   105   96   4
  1   25   230   182   24   65   100   140   96   9
  1 ½   40   260   228   26   85   125   170   130   15
  2   50   300   260   28   95   145   195   150   20

287 KB - VIEW PDF

Forged Steel Gate Valves

PN 10 - 16 - 25 - 40 - 100 / PDF

  287 KB - VIEW PDF
